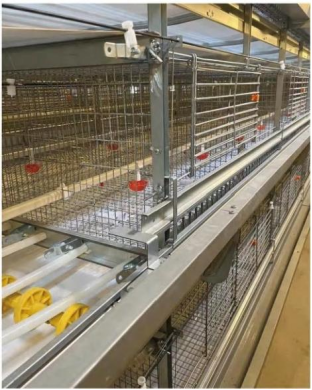

STACKED  (H-TYPE)CHICK  REARING  EQUIPMENT

STACKED (H-TYPE)CHICK REARING EQUIPMENT

0.00
0.00


PRODUCT   FEATURES

The fully assembled equipment features high installation accuracy,stable and reliable operation.

There are two feeding options available:overhead trolley feeding and chain feeding.

The height of the feeding trough can be adjusted in linkage according to the chicken age,reducing the labor intensity    of workers.

The specially designed manure removal system extends the service life of the manure cleaning belt.

Multiple water heating pipes are installed at the bottom of each cage layerand hot water circulation heating ensures  more uniform and controllable temperature in the entire    brooding house.

The high-quality drinking water pipeline supports linked    height adjustment based on the chicken age,reducing the labor intensity of workers.

The integral cage net and cage door adopt a dense mesh design to prevent young chicks from escaping.

The reasonably designed bottom net density ensures the   standing comfort of the flock and improves the uniformity of young chicks.

Products can be customized with different materials and specifications according to the operating environment.   Optional anti-corrosion processes:hot-dip galvanizing   anti-corrosion process,zinc-aluminum-magnesium alloy wire anti-corrosion process,hot-dip galvanized wire  anti-corrosion process.

Layers (L)

Single chicken occupying area PFSA:cm²/bird

Cage capacity SPC (feathers)

Floor height CLS (mm)

Single cage length, 2-cage design UCL, 2-C design (mm)

Cage depth CD (mm)

Cage height CH (mm)

SNS (feathers) per assembled chicken quantity

3

312.5

12

650

1200

625

430

144

4

312.5

12

650

1200

625

430

192

5

312.5

12

650

1200

625

430

240

6(3+3)

312.5

12

650

1200

625

430

288

8(4+4)

312.5

12

650

1200

625

430

384
