PRODUCT FEATURES
Efficient pre-treatment, which can be equipped with automatic feeding and egg feeding in the water tank.
Grading and packaging system with six rows of static weighing, automatic egg cup conveyor line, and mixed packaging line for egg trays and egg boxes.
DSP visual inspection system including dirty egg detection, cracked egg detection and positioning system, as well as PLC control system.
Spare parts are from world-famous brands such as Siemens, Schneider, imported Japanese motors, HMB sensors and Omron sensors.
Point-to-point connection for egg products ensures short conveying distance and more stable operation.
The static egg grading method features high data accuracy with an error less than 0.2g.
The equipment supports egg handling, oiling for freshness preservation and coding.
TECHNICAL PARAMETER
Production MP | 60000 pieces per hour |
Model No | HG 600 |
Energy consumption EC | 23.5kw/h |
Height Ht | 1996mm |
Dimensions Dim. | 20000×12000mm |

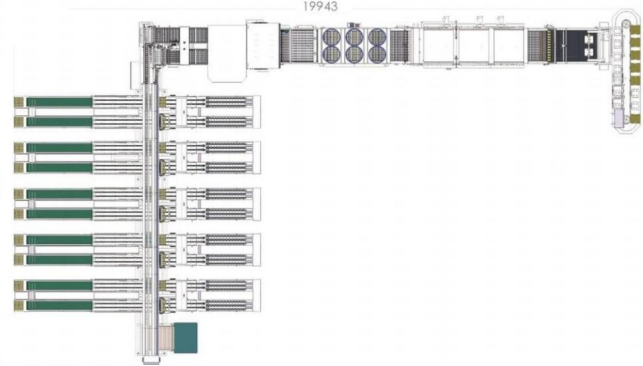

PLANE RENDERING
PRODUCT FEATURES
CLEANING
● The rack adopts an assembled structure,which is more stable and hashigh accuracy,and has a beautiful appearance.
The whole machine is made of 304 stainless steel,which is not corroded bysalt and alkali,ensuring the servicelife of the machine. The rated output of a single machine is 3/60000 pieces per hour.Spray cleaning,15 sets of 40%nylon thread(0.3mm)60%# 500abrasive wire mixture(0.45mm),detachable and easy to clean,adjustable brush lift,controllable water intake,equipped with circulatingwater exchange to reduce water discharge.
Equipped with a sterilizing agent mixing device,which can add agentsaccording to production needs.
6/12 egg roller conveyor packaging:Each egg is individually cleaned toprevent cross infection.
DRY
● Drying,the machine uses a total of 13 sets of brushes,consisting of 10 ontop and 3 on bottom,combined with a fan for drying.
The drying process isscientific,and the eggs are brushed gently without damaging the product.
The drying power is low,the drying is thorough,and the egg conveyingroller is also equipped with a brush to cut off the possibility of secondarypollution.
The drying end is equipped with a high-pressure nozzle to supplementdrying,making it easy to dry in workshops with high humidity during rainyseasons.
OILING
●High pressure atomization oil coating.
●Electrostatic field oil mist recovery ensures no oil leakage.
STERILIZATION
● UV sterilization,high-power UV sterilization 30W×10 sets of sterilizationlamps.
● The sterilization journey is 1.5 meters,ensuring sterilization time and morethorough sterilization.
GRADED PACKAGING
Adopting static weighing,with high weighing accuracy
● The accuracy can reach±0.1g.
● PLC control can automatically allocate different specifications of eggs todesignated workstations according to different needs.
● All egg products are packaged with the small head down.
● 4-16 sets of packaging machines can be configured according to differentneeds.
